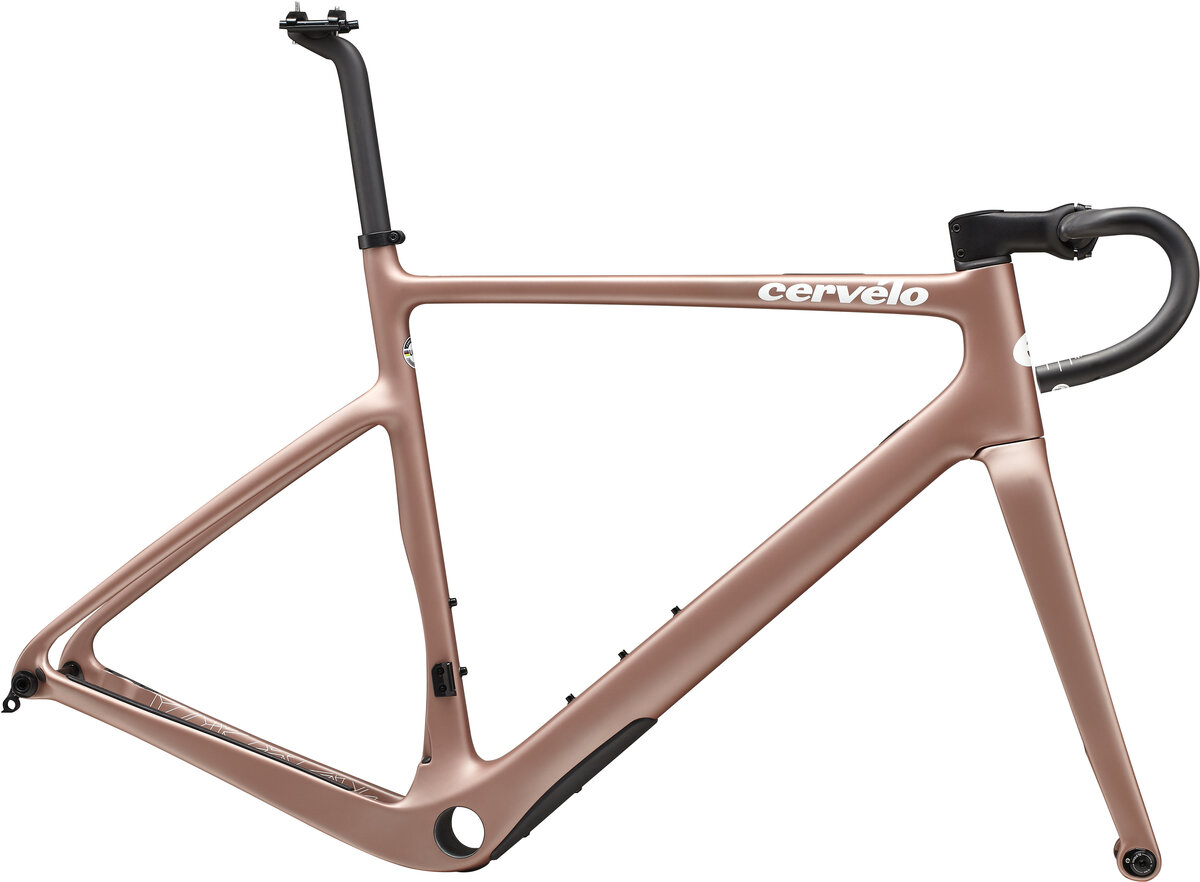

Cervelo Áspero-5 Frameset

Cervelo Áspero-5 Frameset
  • Color: Putty
  • Color: Black
  • Color: Rose Champagne
$5,000.00
Color:
Rose Champagne
Size:
51cm
Please select options Unavailable

Details

Our engineers like to joke that, "if it looks fast, it probably is." But there's some truth to that, and Áspero-5 looks fast standing still. No cables in the wind, tube shapes from our aerodynamically-proven library, and a hint of a cut-out in the seat tube, all add up to a bike that proves the adage.

- Lightweight Speed
Some might say aero doesn't matter on a gravel bike, but if you've battled a headwind across an open prairie, the thirty-two grams of drag you'll save with the Áspero-5 come as a welcome respite. Most gravel racing is done without the benefit of a World Tour peloton—or World Tour tactics—and when it's your nose in the wind all day, it's nice to know your bike's shouldering a bit of the load.

- Two Position Adjustment
Trail—front-wheel response to rider input—is the most critical factor in high-velocity handling. Flipping the two-position "Trail Mixer" to compensate for the difference in circumference between a 650b and 700c tire maintains consistent handling by maintaining consistent trail figures.

- Multiple Configurations
We designed Aspero with clearance for up to 700c x 40mm tires or 650b x 49mm tires. Of course, there are variables—rim width, tire casing, and tread depth—which will affect final clearance. We (and the International Organization for Standardization, or ISO), always recommend 4mm of clearance between the tire and frame.

**New Shimano road (not gravel) 12-speed front derailleurs reduce tire clearance in the rear of the frame to 700 x 38c or 650b x 45c.

- SRAM Integrated Power
Red and Force builds include Quarq Zero power meters integrated into the crank. The integration of a power meter results in better stiffness, lighter weight, and improved accuracy over aftermarket solutions—and the DZero delivers power measurement accurate to +/- 1.5%, even in variable temperatures.

Sizes:
Frame Size485154565861
Reach | mm 370 379 388 397 406 415
Stack | mm 505 530 555 580 605 30
Head Tube Angle 71° 71.5° 72° 72° 72° 72°
Front Center | mm 583 592 602 619 637 654
Bottom Bracket Drop | mm 78.5 78.5 76 76 73.5 73.5
Head Tube Length | mm 83 107 133 159 188 214
Top Tube Length | mm 512 532 553 575 591 608
Seat Tube Angle 74.5° 74° 73.5° 73° 73° 73°
Standover Height | mm 690 732 764 788 814 838
Trail | mm 58.6(700C) / 58.1(650B) 58.6(700C) / 58.1(650B) 58.6(700C) / 58.1(650B) 58.6(700C) / 58.1(650B) 58.6(700C) / 58.1(650B) 58.6(700C) / 58.1(650B)
Wheel Size 700C 700C 700C 700C 700C 700C
Fork Offset | mm 52/57 49/54 46/51 46/51 46/51 46/51
Wheelbase | mm 990 1000 1010 1027 1046 1063
Chainstay Length | mm 420 420 420 420 420 420
Sizes:
Frame SizeRider Height (cm)Rider Height (in)
48 150 - 160 4'11" - 5'3"
51 160 - 168 5'3" - 5'6"
54 168 - 176 5'6" - 5'9"
56 176 - 184 5'9" - 6'0"
58 184 - 192 6'0" - 6'3"
61 192 - 200 6'3" - 6'7"

Specs

Fork Cervélo All-Carbon, Tapered Áspero-5 Fork with Adjustable Trail
Axles Cervelo Indexed Thru-Axles w/ Lever, 12x100/142
Handlebars Carbon AB09 16deg Flared Carbon
Stem Cervélo ST32 Alloy
Headset FSA IS2 1-1/4 x 1-1/2
Seatpost Cervélo SP19 27.2 Carbon
Saddle Sold Separately
Pedals Sold Separately
Accessories & Extras Cervelo Faceplate Front Computer/Accessory Mount
Cervelo Rear Accessory Mount
Smartpak 400A Top Tube Storage Bag

* Subject to change without notice.

Videos

Part Numbers

Option UPC MPN Store SKU
Rose Champagne / 51cm 042677620464 0I0ALAFS2X51 ASP346606641
